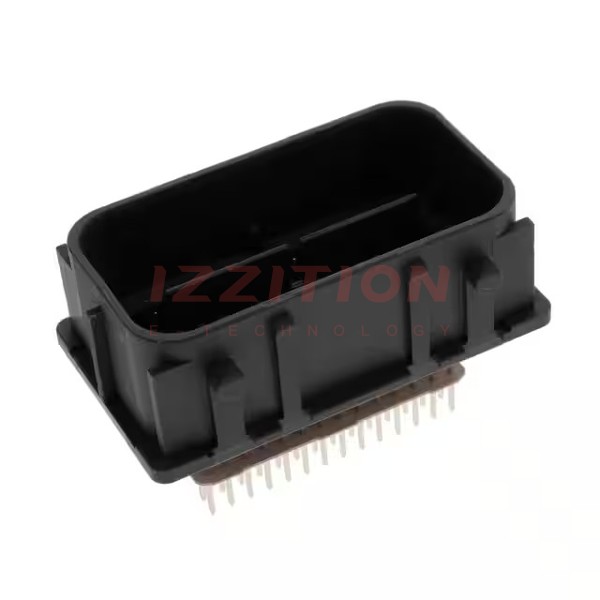

Molex-0313862021 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	56
Number of Rows:	4
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	0.256" (6.50mm)
Overall Contact Length:	-
Insulation Height:	0.848" (21.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Silver
Contact Finish Thickness - Mating:	74.8µin (1.90µm)
Contact Finish - Post:	Tin
Contact Material:	-
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Gray
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0313862021
