0313862002
  • Share:

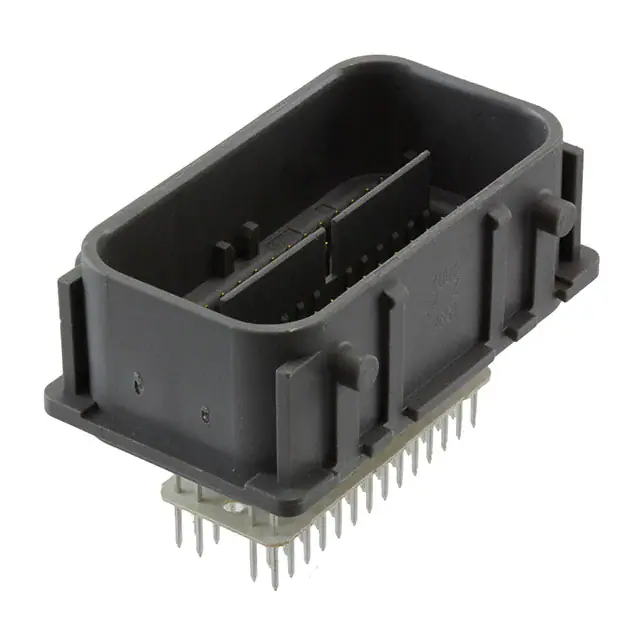

Molex 0313862002

Manufacturer No:
0313862002
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0313862002 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 56POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:56
Number of Rows:4
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.256" (6.50mm)
Overall Contact Length:-
Insulation Height:0.848" (21.54mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$19.14
28

Please send RFQ , we will respond immediately.
