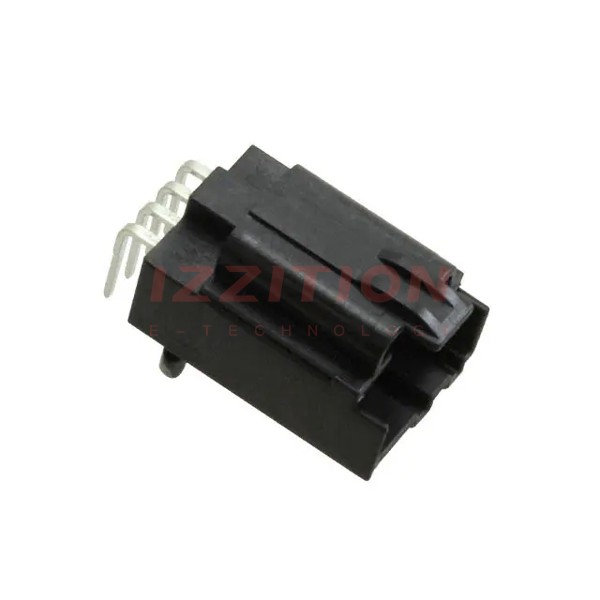

Molex-0311000040 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.139" (3.53mm)
Overall Contact Length:	-
Insulation Height:	0.507" (12.88mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	60.0µin (1.52µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Syndiotactic Polystyrene (SPS)
Features:	Board Lock
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0311000040
