0026485242
  • Share:

Molex 0026485242

Manufacturer No:
0026485242
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0026485242 Datasheet
ECAD Model:
-
Description:

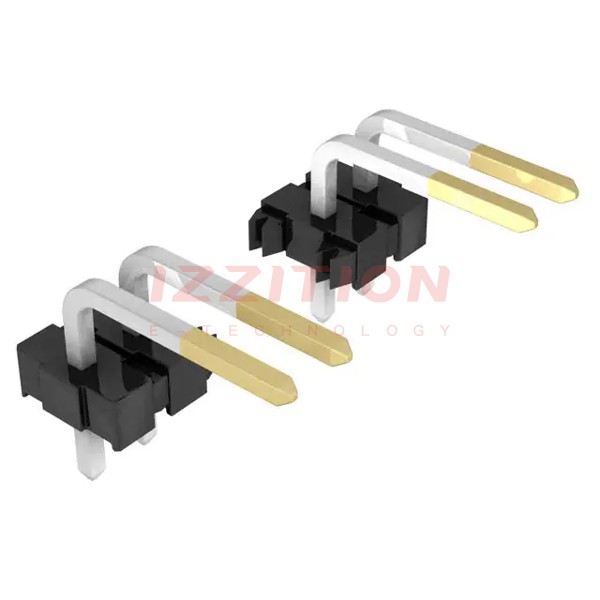

CONN HEADER R/A 24POS 3.96MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:24
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.775" (19.69mm)
Contact Length - Post:0.182" (4.62mm)
Overall Contact Length:-
Insulation Height:0.128" (3.25mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:20.0µin (0.51µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$10.39
70

Please send RFQ , we will respond immediately.
