Molex-0026482042 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.573" (14.55mm)
Contact Length - Post:	0.184" (4.67mm)
Overall Contact Length:	-
Insulation Height:	0.128" (3.25mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	20.0µin (0.51µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyester, Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

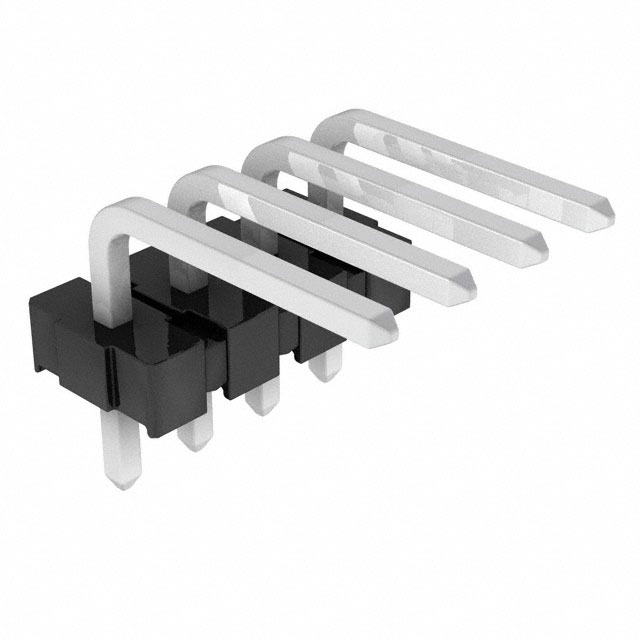

Molex 0026482042
