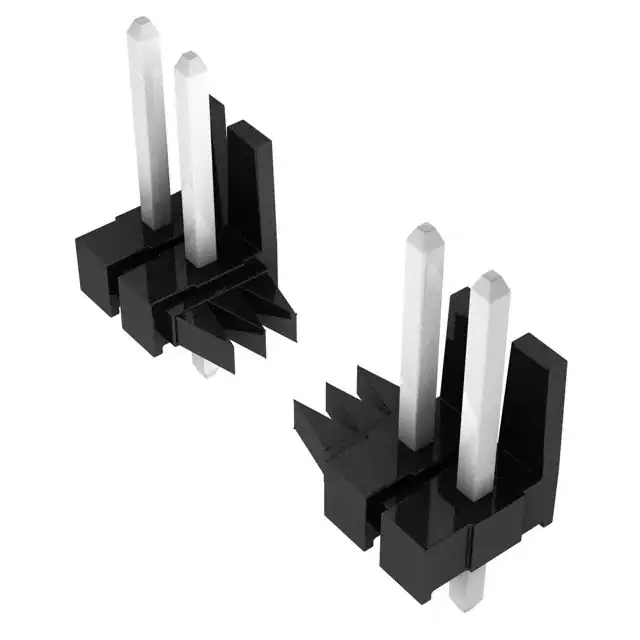

Molex-0026481103 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	10
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.450" (11.43mm)
Contact Length - Post:	0.172" (4.37mm)
Overall Contact Length:	0.750" (19.05mm)
Insulation Height:	0.360" (9.14mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	60.0µin (1.52µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyester, Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0026481103
