0022283034
  • Share:

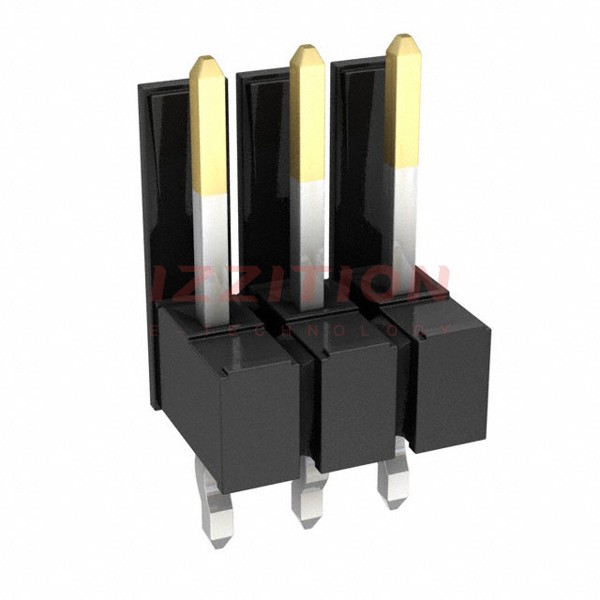

Molex 0022283034

Manufacturer No:
0022283034
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0022283034 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 3POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.295" (7.49mm)
Contact Length - Post:0.135" (3.43mm)
Overall Contact Length:0.555" (14.10mm)
Insulation Height:0.337" (8.56mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
17

Please send RFQ , we will respond immediately.
