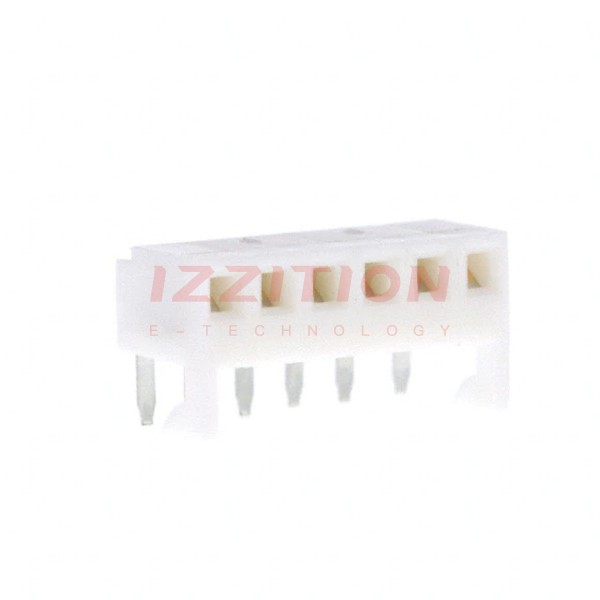

Molex 0022162060

Manufacturer No:
0022162060
Manufacturer:
Molex
Package:
Tray
Datasheet:
0022162060 Datasheet
ECAD Model:
-
Description:
CONN RCPT 6POS 0.1 GOLD EDGE MNT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Non-Gendered
Style:Board to Board or Cable
Number of Positions:6
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Insulation Color:White
Insulation Height:0.185" (4.70mm)
Contact Length - Post:0.132" (3.35mm)
Operating Temperature:-40°C ~ 80°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Hooks
Current Rating (Amps):2.5A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$1.26
483

Please send RFQ , we will respond immediately.
