Molex-0022102021 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	2
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.295" (7.49mm)
Contact Length - Post:	0.135" (3.43mm)
Overall Contact Length:	0.560" (14.22mm)
Insulation Height:	0.130" (3.30mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	20.0µin (0.51µm)
Contact Finish - Post:	Tin
Contact Material:	-
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	White
Current Rating (Amps):	-
Voltage Rating:	-

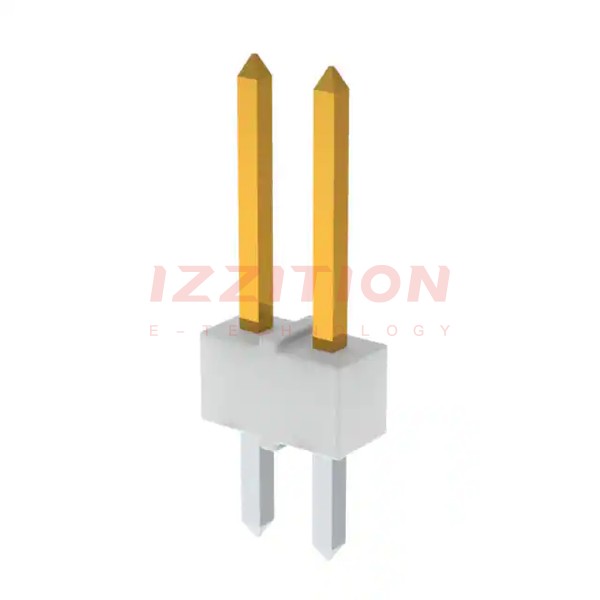

Molex 0022102021
