0022052151
  • Share:

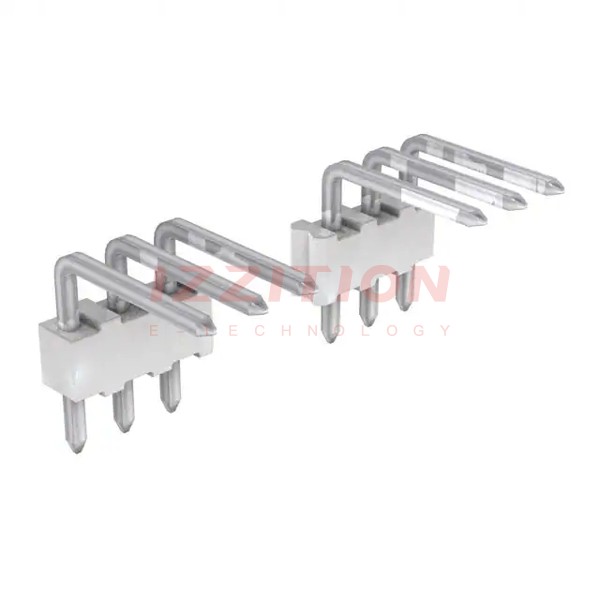

Molex 0022052151

Manufacturer No:
0022052151
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0022052151 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 15POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:15
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.369" (9.37mm)
Contact Length - Post:0.124" (3.15mm)
Overall Contact Length:-
Insulation Height:0.130" (3.30mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$1.64
270

Please send RFQ , we will respond immediately.
