0022035135
  • Share:

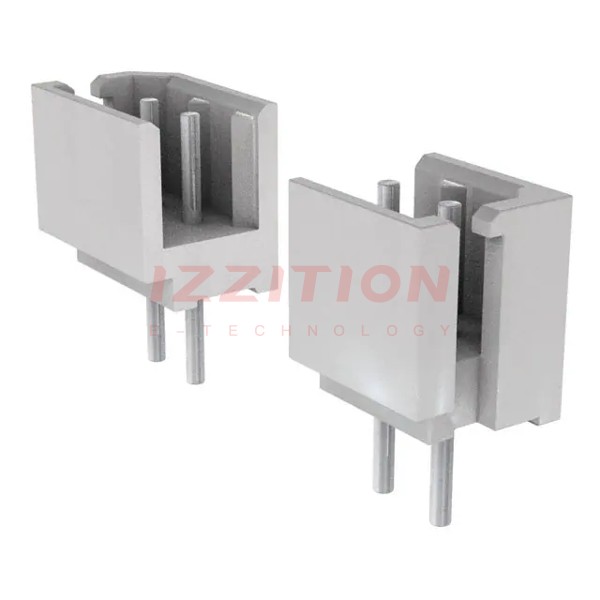

Molex 0022035135

Manufacturer No:
0022035135
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0022035135 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 13POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:13
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.138" (3.50mm)
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:0.350" (8.89mm)
Insulation Height:0.232" (5.90mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:-
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.30
1,706

Please send RFQ , we will respond immediately.
