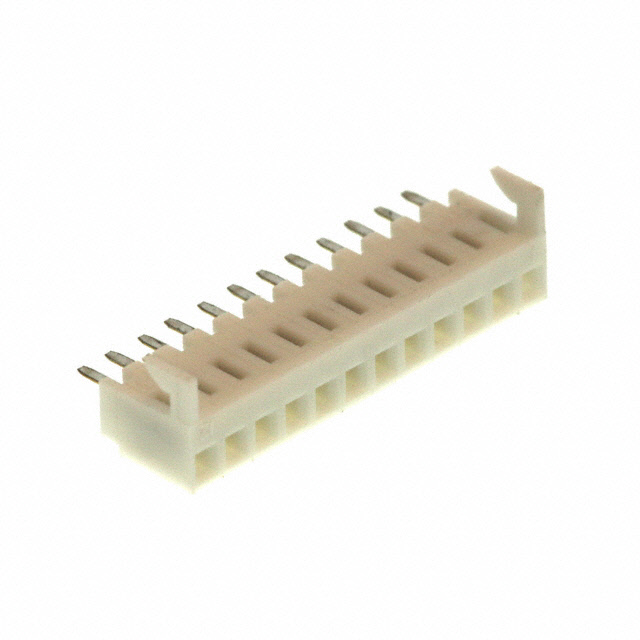

Molex-0022022125 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle
Contact Type:	Non-Gendered
Style:	Board to Board or Cable
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Insulation Color:	White
Insulation Height:	0.311" (7.90mm)
Contact Length - Post:	0.132" (3.35mm)
Operating Temperature:	-40°C ~ 80°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Hooks
Current Rating (Amps):	2.5A
Voltage Rating:	250VAC

Molex 0022022125
