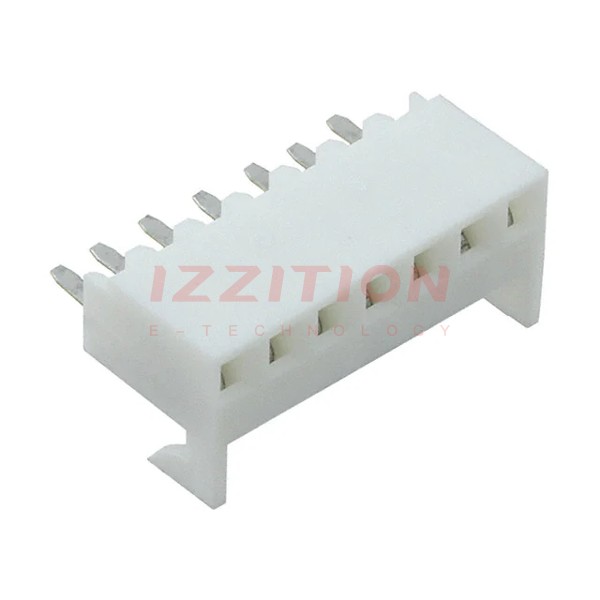

Molex 0022022075

Manufacturer No:
0022022075
Manufacturer:
Molex
Package:
Tray
Datasheet:
0022022075 Datasheet
ECAD Model:
-
Description:
CONN RCPT 7POS 0.1 TIN PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Non-Gendered
Style:Board to Board or Cable
Number of Positions:7
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Insulation Color:White
Insulation Height:0.311" (7.90mm)
Contact Length - Post:0.132" (3.35mm)
Operating Temperature:-40°C ~ 80°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Hooks
Current Rating (Amps):2.5A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$1.02
108

Please send RFQ , we will respond immediately.
