0015977084
  • Share:

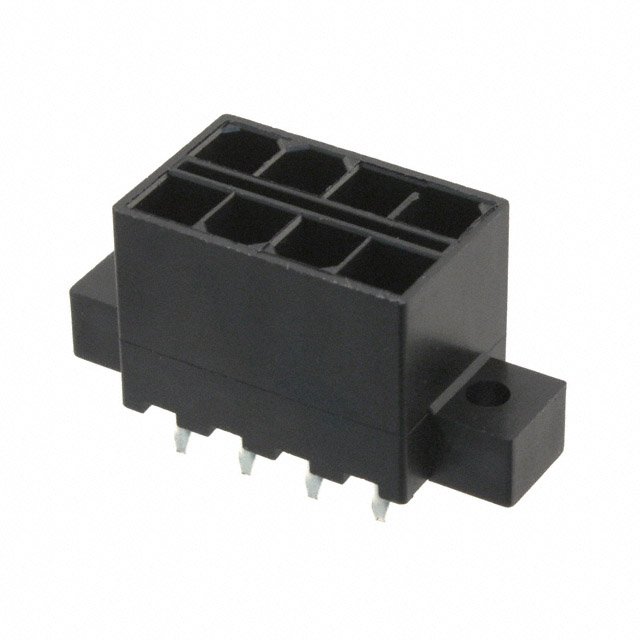

Molex 0015977084

Manufacturer No:
0015977084
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0015977084 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 8POS 4.2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.217" (5.51mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Brass Alloy
Insulation Material:Polyester
Features:Mounting Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
358

Please send RFQ , we will respond immediately.
