0015477608
  • Share:

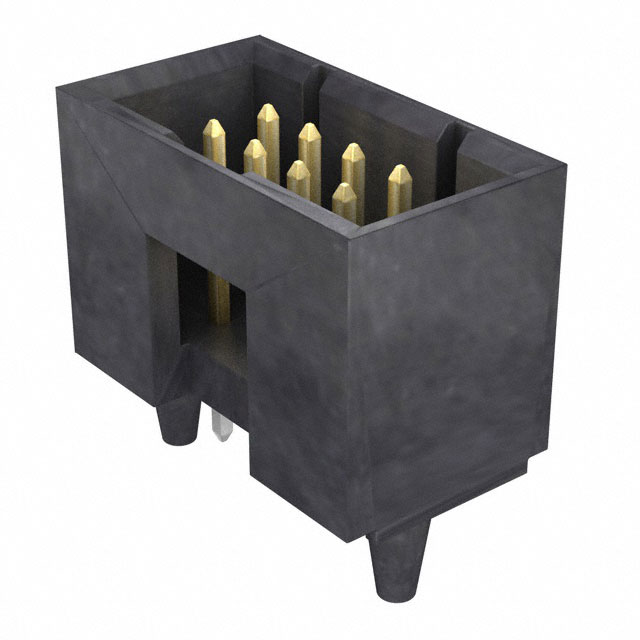

Molex 0015477608

Manufacturer No:
0015477608
Manufacturer:
Molex
Package:
Tube
Datasheet:
0015477608 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 8POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.315" (8.00mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:0.570" (14.48mm)
Insulation Height:0.475" (12.07mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$4.49
143

Please send RFQ , we will respond immediately.
