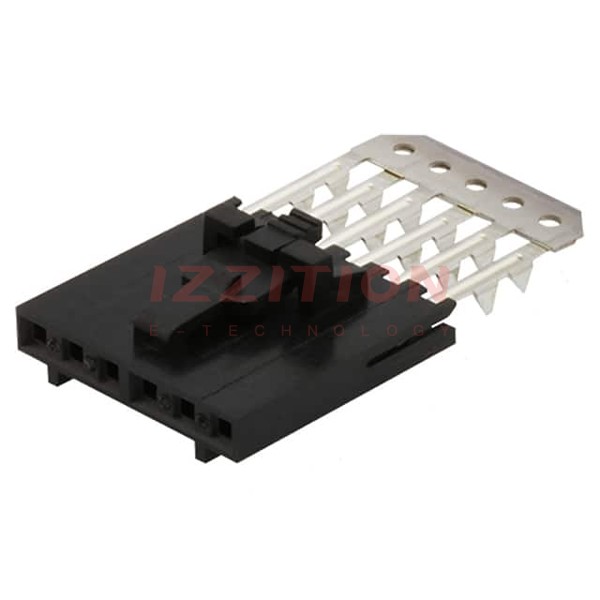

Molex 0015474123

Manufacturer No:
0015474123
Manufacturer:
Molex
Package:
Tube
Datasheet:
0015474123 Datasheet
ECAD Model:
-
Description:
CONN FFC CIC RCPT 12POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, CIC
Mounting Type:Free Hanging (In-Line)
Connector/Contact Type:Receptacle
Number of Positions:12
Pitch:0.100" (2.54mm)
Termination:IDC
FFC, FCB Thickness:0.13 ~ 0.28mm, 0.30mm
Height Above Board:-
Locking Feature:Latch Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Polyester, Glass Filled
Actuator Material:-
Features:-
Voltage Rating:250V
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$5.04
15

Please send RFQ , we will respond immediately.
