0015445820
  • Share:

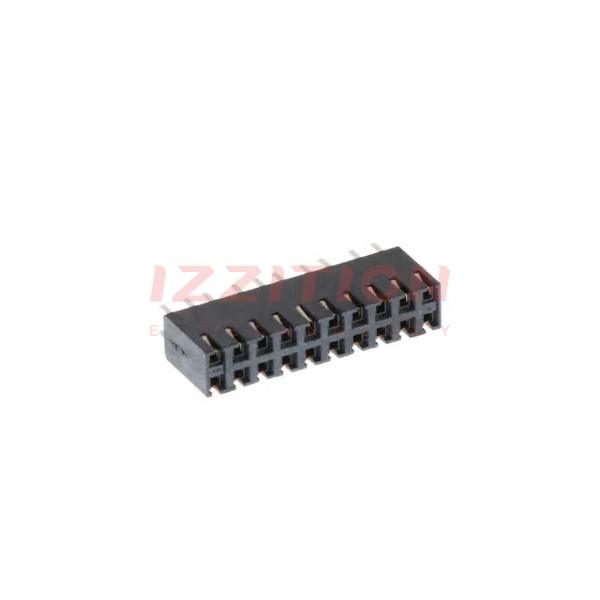

Molex 0015445820

Manufacturer No:
0015445820
Manufacturer:
Molex
Package:
Tray
Datasheet:
0015445820 Datasheet
ECAD Model:
-
Description:
CONN RCPT 20POS 0.1 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:20
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Insulation Color:Black
Insulation Height:0.340" (8.64mm)
Contact Length - Post:0.120" (3.05mm)
Operating Temperature:-40°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):2.5A
Voltage Rating:500VAC
0 Remaining View Similar

In Stock

$11.66
36

Please send RFQ , we will respond immediately.
