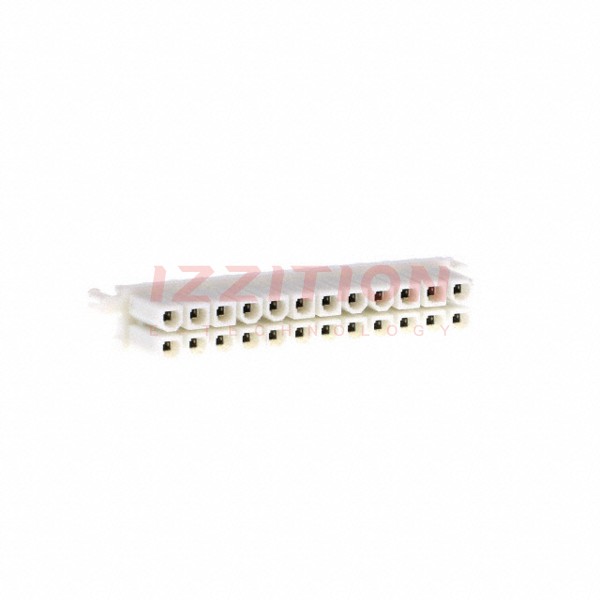

Molex 0015247241

Manufacturer No:
0015247241
Manufacturer:
Molex
Package:
Tray
Datasheet:
0015247241 Datasheet
ECAD Model:
-
Description:
CONN RCPT 24POS 0.165 TIN PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:24
Number of Positions Loaded:All
Pitch - Mating:0.165" (4.20mm)
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Insulation Color:Natural
Insulation Height:0.446" (11.33mm)
Contact Length - Post:0.138" (3.50mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Lock
Current Rating (Amps):-
Voltage Rating:600V
0 Remaining View Similar

In Stock

$7.15
133

Please send RFQ , we will respond immediately.
