Molex-0015247187 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	18
Number of Positions Loaded:	All
Pitch - Mating:	0.165" (4.20mm)
Number of Rows:	2
Row Spacing - Mating:	0.165" (4.20mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Insulation Color:	Natural
Insulation Height:	0.446" (11.33mm)
Contact Length - Post:	0.138" (3.50mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Lock
Current Rating (Amps):	-
Voltage Rating:	600V

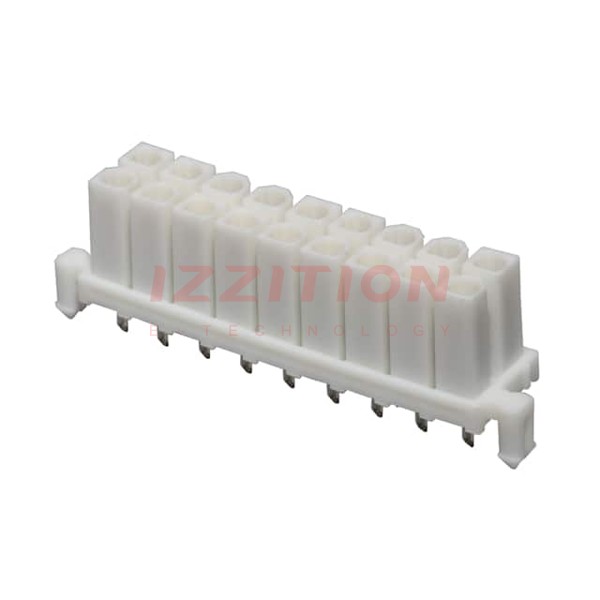

Molex 0015247187
