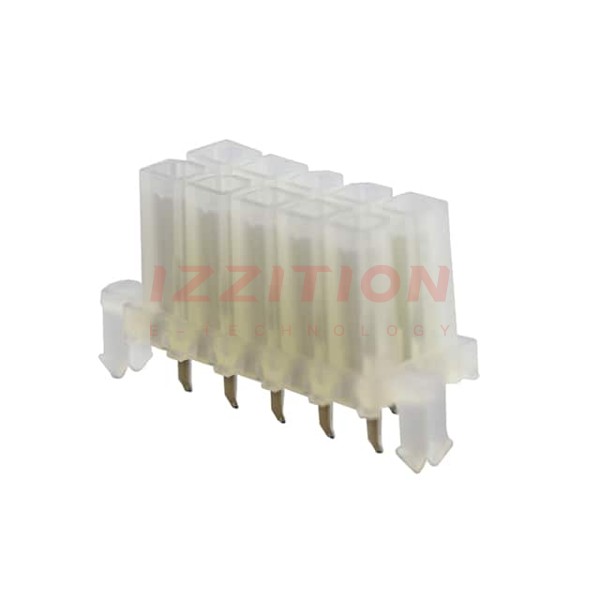

Molex 0015247102

Manufacturer No:
0015247102
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0015247102 Datasheet
ECAD Model:
-
Description:
CONN RCPT 10POS 0.165 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:10
Number of Positions Loaded:All
Pitch - Mating:0.165" (4.20mm)
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Natural
Insulation Height:0.446" (11.33mm)
Contact Length - Post:0.138" (3.50mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-2
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Lock
Current Rating (Amps):-
Voltage Rating:600V
0 Remaining View Similar

In Stock

$3.39
190

Please send RFQ , we will respond immediately.
