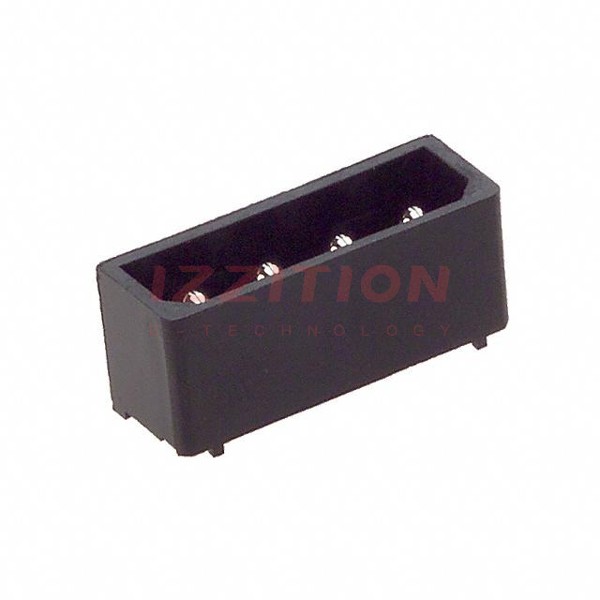

Molex-0015244157 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.200" (5.08mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.200" (5.08mm)
Contact Length - Post:	0.083" (2.11mm)
Overall Contact Length:	-
Insulation Height:	0.404" (10.26mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin-Lead
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	Tin-Lead
Contact Material:	Phosphor Bronze
Insulation Material:	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0015244157
