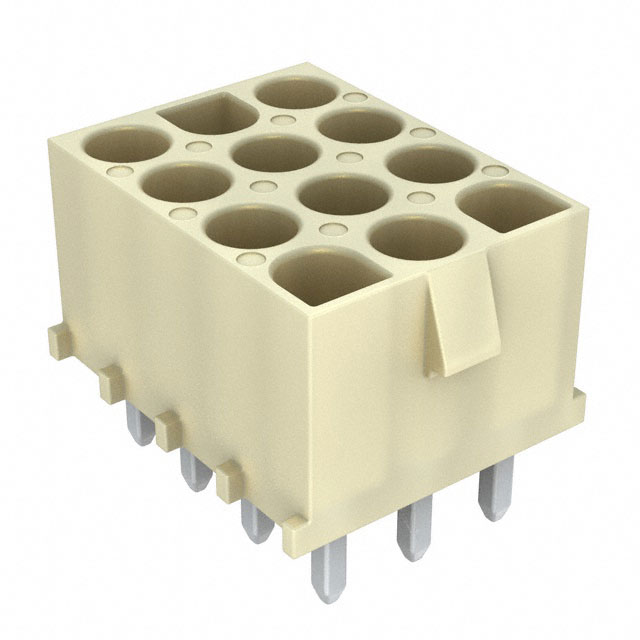

Molex-0010844122 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Female Socket
Style:	Board to Cable/Wire
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.250" (6.35mm)
Number of Rows:	3
Row Spacing - Mating:	0.250" (6.35mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	137.8µin (3.50µm)
Insulation Color:	Natural
Insulation Height:	0.550" (13.97mm)
Contact Length - Post:	0.169" (4.30mm)
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-2
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	-
Voltage Rating:	600V

Molex 0010844122
