Molex-0010321091 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.200" (5.08mm)
Number of Positions:	9
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.419" (10.65mm)
Contact Length - Post:	0.142" (3.60mm)
Overall Contact Length:	0.687" (17.45mm)
Insulation Height:	0.508" (12.90mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	200.0µin (5.08µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA66), Nylon 6/6
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	-

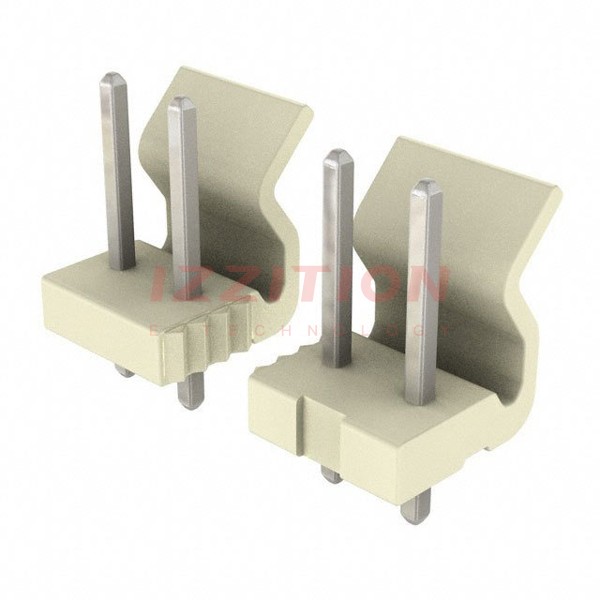

Molex 0010321091
