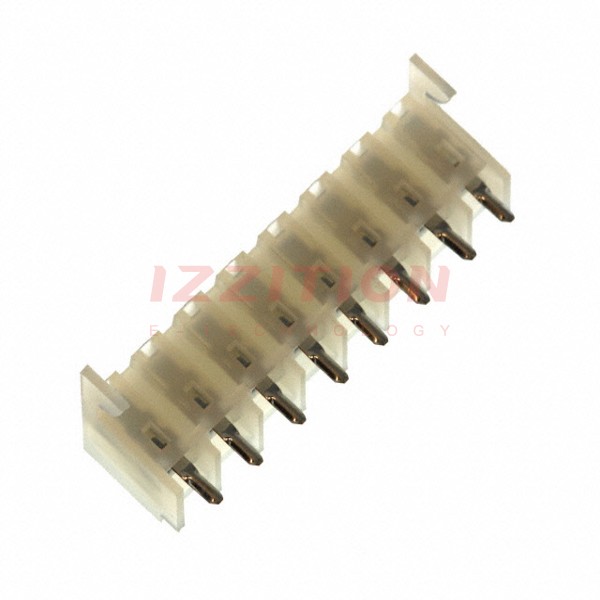

Molex-0010101083 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle
Contact Type:	Non-Gendered
Style:	Board to Board or Cable
Number of Positions:	8
Number of Positions Loaded:	All
Pitch - Mating:	0.200" (5.08mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Insulation Color:	Natural
Insulation Height:	0.453" (11.50mm)
Contact Length - Post:	0.110" (2.79mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-2
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Hooks
Current Rating (Amps):	5A
Voltage Rating:	250V

Molex 0010101083
