0010081121
  • Share:

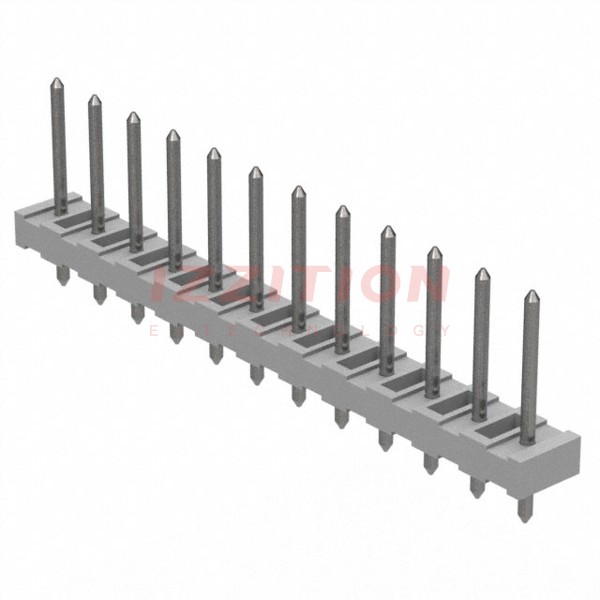

Molex 0010081121

Manufacturer No:
0010081121
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0010081121 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 12POS 5.08MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.200" (5.08mm)
Number of Positions:12
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.470" (11.94mm)
Contact Length - Post:0.155" (3.94mm)
Overall Contact Length:0.750" (19.05mm)
Insulation Height:0.125" (3.18mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$2.46
302

Please send RFQ , we will respond immediately.
