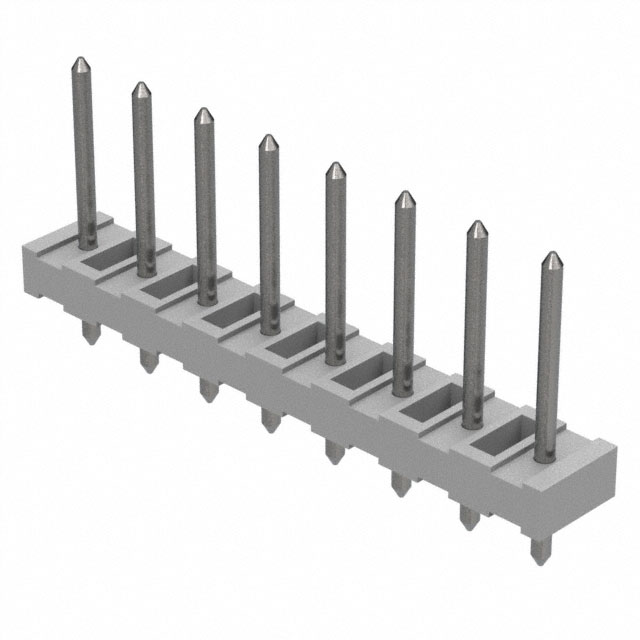

Molex-0010081081 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.200" (5.08mm)
Number of Positions:	8
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.470" (11.94mm)
Contact Length - Post:	0.155" (3.94mm)
Overall Contact Length:	0.750" (19.05mm)
Insulation Height:	0.125" (3.18mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0010081081
