0009781161
  • Share:

Molex 0009781161

Manufacturer No:
0009781161
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0009781161 Datasheet
ECAD Model:
-
Description:

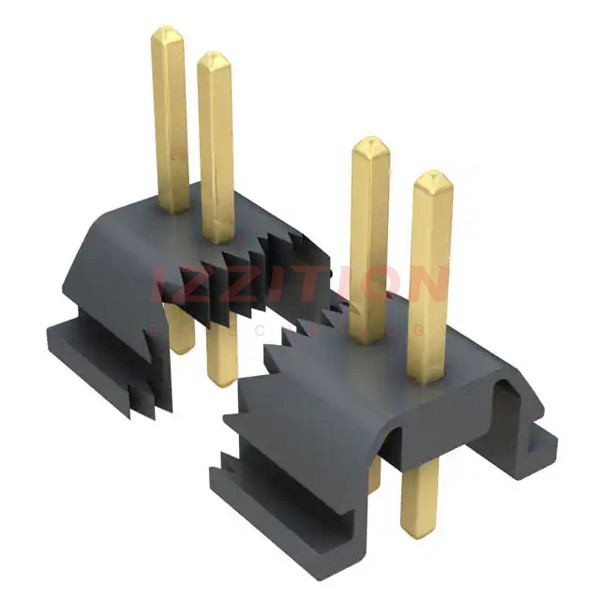

CONN HEADER VERT 16POS 3.96MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:16
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Unshrouded
Mounting Type:Panel Mount, Snap-In; Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.630" (16.00mm)
Contact Length - Post:0.635" (16.13mm)
Overall Contact Length:1.380" (35.05mm)
Insulation Height:0.250" (6.35mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:20.0µin (0.51µm)
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
218

Please send RFQ , we will respond immediately.
