Molex-0009781061 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	6
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Unshrouded
Mounting Type:	Panel Mount, Snap-In; Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.630" (16.00mm)
Contact Length - Post:	0.635" (16.13mm)
Overall Contact Length:	1.380" (35.05mm)
Insulation Height:	0.250" (6.35mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	20.0µin (0.51µm)
Contact Finish - Post:	Gold
Contact Material:	Brass
Insulation Material:	Polyamide (PA66), Nylon 6/6
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	-

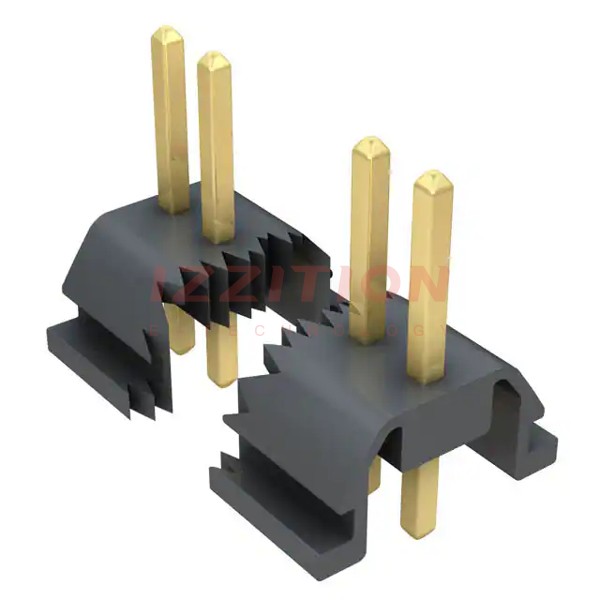

Molex 0009781061
