0009652078
  • Share:

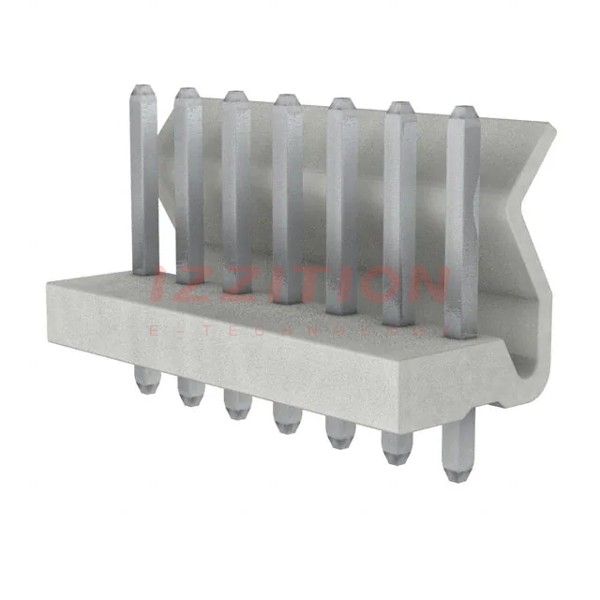

Molex 0009652078

Manufacturer No:
0009652078
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0009652078 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 7POS 3.96MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:7
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.419" (10.65mm)
Contact Length - Post:0.142" (3.60mm)
Overall Contact Length:0.687" (17.45mm)
Insulation Height:0.482" (12.25mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:200.0µin (5.08µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.91
729

Please send RFQ , we will respond immediately.
