0009623082
  • Share:

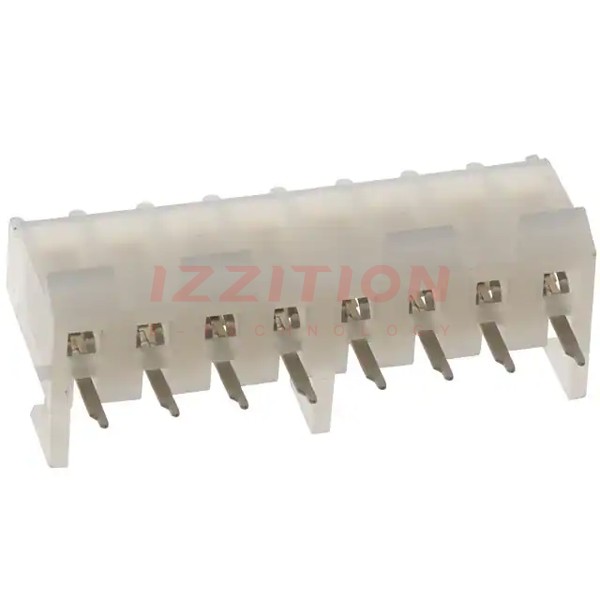

Molex 0009623082

Manufacturer No:
0009623082
Manufacturer:
Molex
Package:
Tray
Datasheet:
0009623082 Datasheet
ECAD Model:
-
Description:
CONN RCPT 8POS 0.156 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Bottom Entry
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:8
Number of Positions Loaded:All
Pitch - Mating:0.156" (3.96mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Insulation Color:White
Insulation Height:0.449" (11.40mm)
Contact Length - Post:0.160" (4.06mm)
Operating Temperature:-40°C ~ 80°C
Material Flammability Rating:UL94 V-2
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Hooks
Current Rating (Amps):4A
Voltage Rating:600V
0 Remaining View Similar

In Stock

-
528

Please send RFQ , we will respond immediately.
