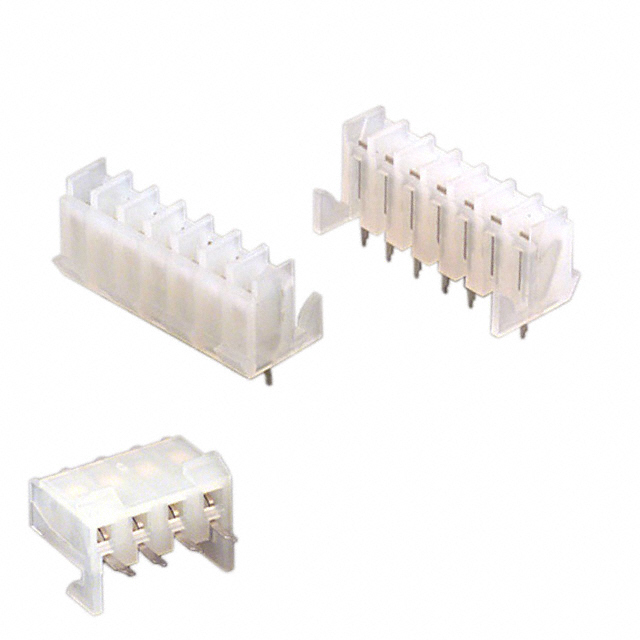

Molex-0009623072 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle, Bottom Entry
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	7
Number of Positions Loaded:	All
Pitch - Mating:	0.156" (3.96mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Insulation Color:	White
Insulation Height:	0.449" (11.40mm)
Contact Length - Post:	0.160" (4.06mm)
Operating Temperature:	-40°C ~ 80°C
Material Flammability Rating:	UL94 V-2
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Hooks
Current Rating (Amps):	4A
Voltage Rating:	600V

Molex 0009623072
