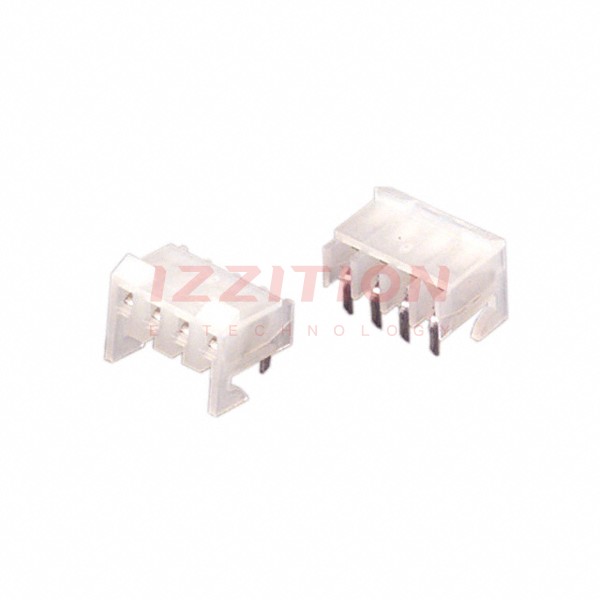

Molex 0009523041

Manufacturer No:
0009523041
Manufacturer:
Molex
Package:
Tray
Datasheet:
0009523041 Datasheet
ECAD Model:
-
Description:
CONN RCPT 4P 0.156 TIN EDGE MNT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:4
Number of Positions Loaded:All
Pitch - Mating:0.156" (3.96mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Insulation Color:White
Insulation Height:0.308" (7.82mm)
Contact Length - Post:0.145" (3.68mm)
Operating Temperature:-40°C ~ 80°C
Material Flammability Rating:UL94 V-2
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Hooks
Current Rating (Amps):4.5A
Voltage Rating:600V
0 Remaining View Similar

In Stock

-
121

Please send RFQ , we will respond immediately.
