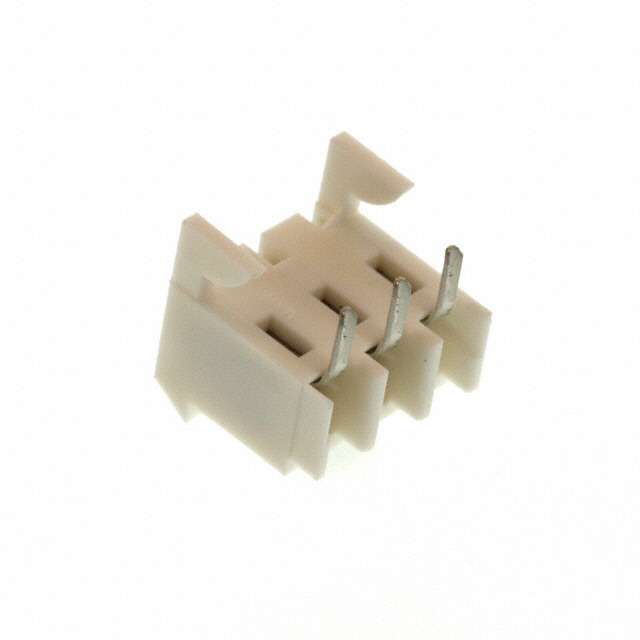

Molex 0009483035

Manufacturer No:
0009483035
Manufacturer:
Molex
Package:
Tray
Datasheet:
0009483035 Datasheet
ECAD Model:
-
Description:
CONN RCPT 3P 0.156 GOLD EDGE MNT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:3
Number of Positions Loaded:All
Pitch - Mating:0.156" (3.96mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Insulation Color:Natural
Insulation Height:0.308" (7.82mm)
Contact Length - Post:0.145" (3.68mm)
Operating Temperature:-40°C ~ 80°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Hooks
Current Rating (Amps):4.5A
Voltage Rating:600V
0 Remaining View Similar

In Stock

$0.75
360

Please send RFQ , we will respond immediately.
