Molex-0009483031 - Sockets for ICs, Transistors Product Specifications and Latest Quotes

Type:	Transistor, TO-220
Number of Positions or Pins (Grid):	3 (Rectangular)
Pitch - Mating:	-
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Material - Mating:	Brass
Mounting Type:	Through Hole
Features:	Closed Frame
Termination:	Solder
Pitch - Post:	-
Contact Finish - Post:	Tin
Contact Finish Thickness - Post:	100.0µin (2.54µm)
Contact Material - Post:	Brass
Housing Material:	Polyamide (PA66), Nylon 6/6
Operating Temperature:	-40°C ~ 80°C

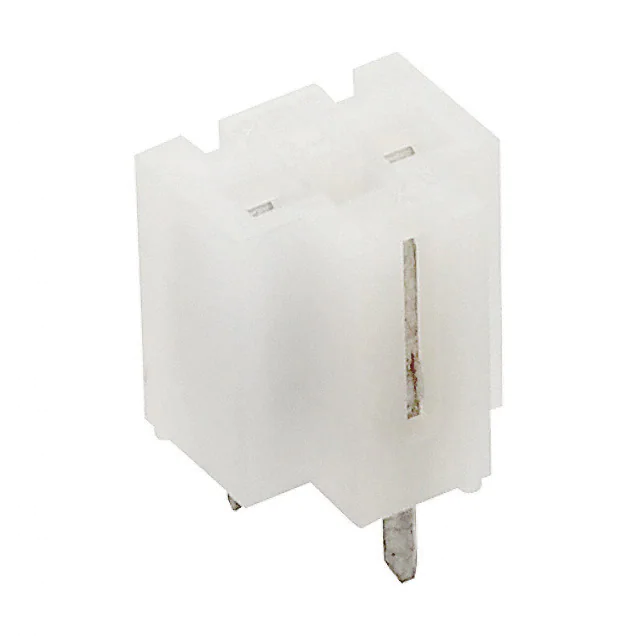

Molex 0009483031
