0008500473
  • Share:

Molex 0008500473

Manufacturer No:
0008500473
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0008500473 Datasheet
ECAD Model:
-
Description:

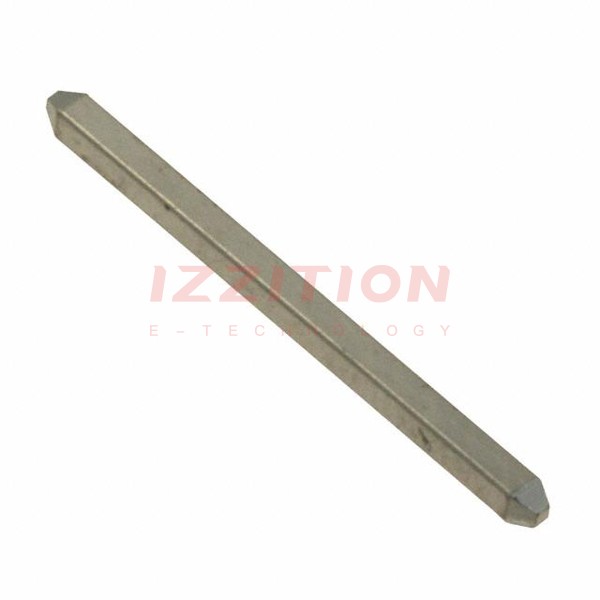

CONN PC PIN SQUARE 0.045 TIN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Terminal Type:Single Post
Terminal Style:Smooth
Pin Size - Above Flange:0.045" (1.14mm) Square
Pin Size - Below Flange:0.045" (1.14mm) Square
Length - Above Flange:-
Length - Below Flange:-
Length - Overall:0.472" (11.99mm)
Flange Diameter:-
Mounting Hole Diameter:0.050" ~ 0.053" (1.27mm ~ 1.35mm)
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Non-Insulated
Board Thickness:0.062" (1.57mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:200.0µin (5.08µm)
0 Remaining View Similar

In Stock

-
42

Please send RFQ , we will respond immediately.
