ZVBP-9R6G-S+
  • Share:

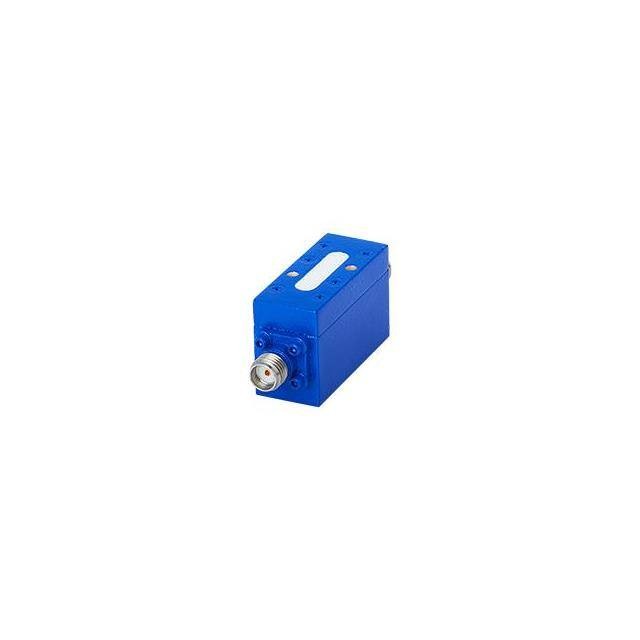

Mini-Circuits ZVBP-9R6G-S+

Manufacturer No:
ZVBP-9R6G-S+
Manufacturer:
Mini-Circuits
Package:
Tray
Datasheet:
ZVBP-9R6G-S+ Datasheet
ECAD Model:
-
Description:
CAVITY BPF, 9550 - 9650 MHZ
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Frequency:9.6GHz Center
Bandwidth:100MHz
Filter Type:Band Pass
Ripple:-
Insertion Loss:2dB
Mounting Type:Chassis Mount
Package / Case:Module, SMA Connectors
Size / Dimension:1.224" L x 0.500" W (31.10mm x 12.70mm)
Height (Max):0.752" (19.10mm)
0 Remaining View Similar

In Stock

$481.67
3

Please send RFQ , we will respond immediately.
