ZVBP-9750-S+
  • Share:

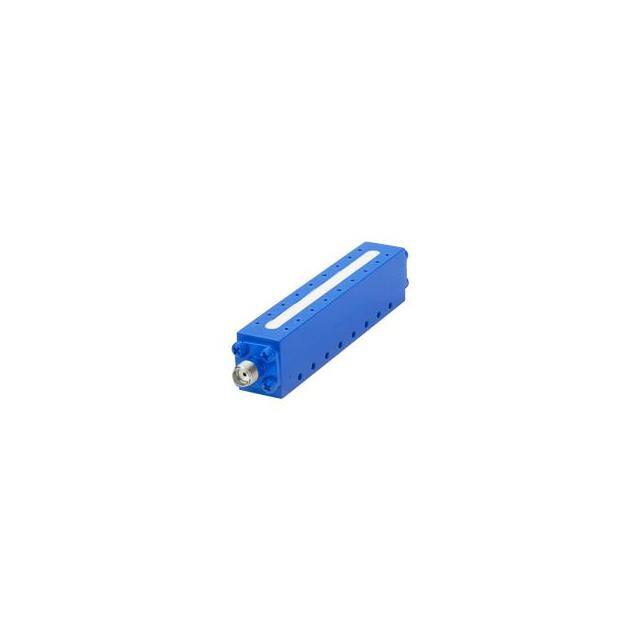

Mini-Circuits ZVBP-9750-S+

Manufacturer No:
ZVBP-9750-S+
Manufacturer:
Mini-Circuits
Package:
Tray
Datasheet:
ZVBP-9750-S+ Datasheet
ECAD Model:
-
Description:
CAVITY BPF, 9500 - 10000 MHZ
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Frequency:9.75GHz Center
Bandwidth:500MHz
Filter Type:Band Pass
Ripple:-
Insertion Loss:1.5dB
Mounting Type:Chassis Mount
Package / Case:Module, SMA Connectors
Size / Dimension:2.976" L x 0.524" W (75.60mm x 13.30mm)
Height (Max):0.669" (17.00mm)
0 Remaining View Similar

In Stock

$526.05
3

Please send RFQ , we will respond immediately.
