ZVBP-7100-S+
  • Share:

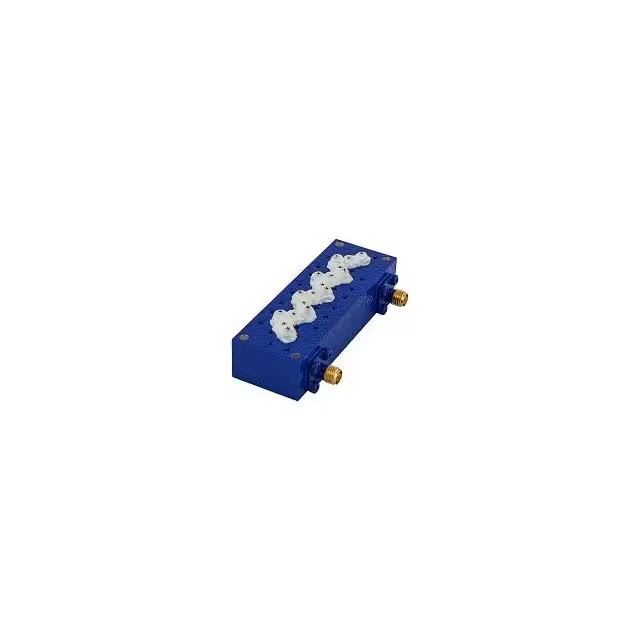

Mini-Circuits ZVBP-7100-S+

Manufacturer No:
ZVBP-7100-S+
Manufacturer:
Mini-Circuits
Package:
Tray
Datasheet:
ZVBP-7100-S+ Datasheet
ECAD Model:
-
Description:
CAVITY BPF, 7025 - 7175 MHZ
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Frequency:7.1GHz Center
Bandwidth:150MHz
Filter Type:Band Pass
Ripple:-
Insertion Loss:3.5dB
Mounting Type:Chassis Mount
Package / Case:Module, SMA Connectors
Size / Dimension:3.000" L x 0.800" W (76.20mm x 20.32mm)
Height (Max):0.669" (17.00mm)
0 Remaining View Similar

In Stock

$485.87
2

Please send RFQ , we will respond immediately.
