ZVBP-5800-S+
  • Share:

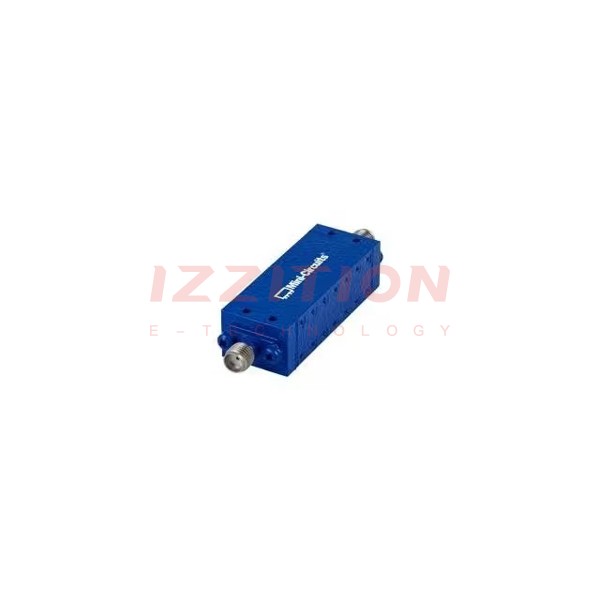

Mini-Circuits ZVBP-5800-S+

Manufacturer No:
ZVBP-5800-S+
Manufacturer:
Mini-Circuits
Package:
Tray
Datasheet:
ZVBP-5800-S+ Datasheet
ECAD Model:
-
Description:
CAVITY BPF, 5725 - 5875 MHZ
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Frequency:5.8GHz Center
Bandwidth:150MHz
Filter Type:Band Pass
Ripple:-
Insertion Loss:1.2dB
Mounting Type:Chassis Mount
Package / Case:Module, SMA Connectors
Size / Dimension:1.827" L x 0.699" W (46.40mm x 17.75mm)
Height (Max):0.531" (13.50mm)
0 Remaining View Similar

In Stock

$466.12
2

Please send RFQ , we will respond immediately.
