ZVBP-2300A-S+
  • Share:

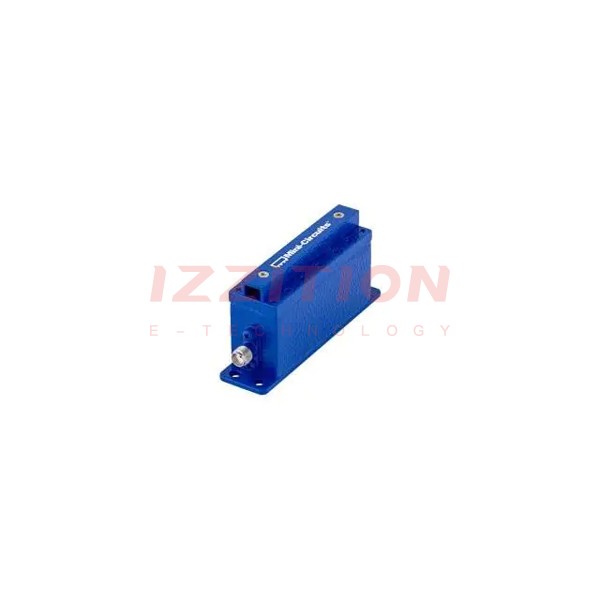

Mini-Circuits ZVBP-2300A-S+

Manufacturer No:
ZVBP-2300A-S+
Manufacturer:
Mini-Circuits
Package:
Tray
Datasheet:
ZVBP-2300A-S+ Datasheet
ECAD Model:
-
Description:
CAVITY BPF, 2200 - 2400 MHZ
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Frequency:2.3GHz Center
Bandwidth:200MHz
Filter Type:Band Pass
Ripple:-
Insertion Loss:1dB
Mounting Type:Chassis Mount
Package / Case:Module, SMA Connectors
Size / Dimension:3.103" L x 0.768" W (78.81mm x 19.50mm)
Height (Max):1.486" (37.75mm)
0 Remaining View Similar

In Stock

$334.96
2

Please send RFQ , we will respond immediately.
