ZVBP-1420-N+
  • Share:

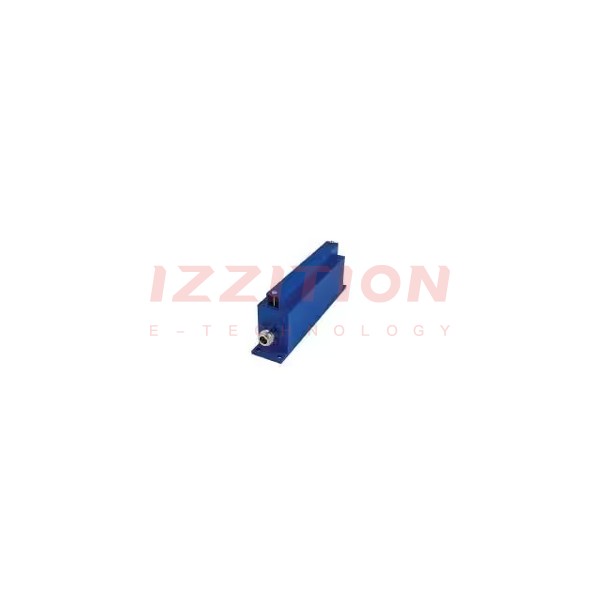

Mini-Circuits ZVBP-1420-N+

Manufacturer No:
ZVBP-1420-N+
Manufacturer:
Mini-Circuits
Package:
Tray
Datasheet:
ZVBP-1420-N+ Datasheet
ECAD Model:
-
Description:
CAVITY BPF, 1415 - 1425 MHZ
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Frequency:1.42GHz Center
Bandwidth:10MHz
Filter Type:Band Pass
Ripple:-
Insertion Loss:2.5dB
Mounting Type:Chassis Mount
Package / Case:Module
Size / Dimension:7.250" L x 1.425" W (184.15mm x 36.20mm)
Height (Max):2.725" (69.22mm)
0 Remaining View Similar

In Stock

$733.52
3

Please send RFQ , we will respond immediately.
