ZVBP-13R1G-S+
  • Share:

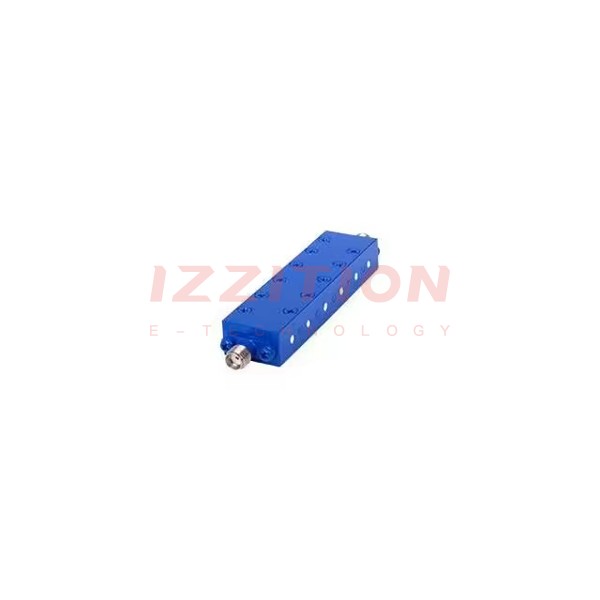

Mini-Circuits ZVBP-13R1G-S+

Manufacturer No:
ZVBP-13R1G-S+
Manufacturer:
Mini-Circuits
Package:
Tray
Datasheet:
ZVBP-13R1G-S+ Datasheet
ECAD Model:
-
Description:
CAVITY BPF, 11700 - 14500 MHZ
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Frequency:13.1GHz Center
Bandwidth:2.8GHz
Filter Type:Band Pass
Ripple:-
Insertion Loss:2dB
Mounting Type:Chassis Mount
Package / Case:Module
Size / Dimension:2.559" L x 0.654" W (65.00mm x 16.60mm)
Height (Max):0.441" (11.20mm)
0 Remaining View Similar

In Stock

$466.91
2

Please send RFQ , we will respond immediately.
