Please send RFQ , we will respond immediately.

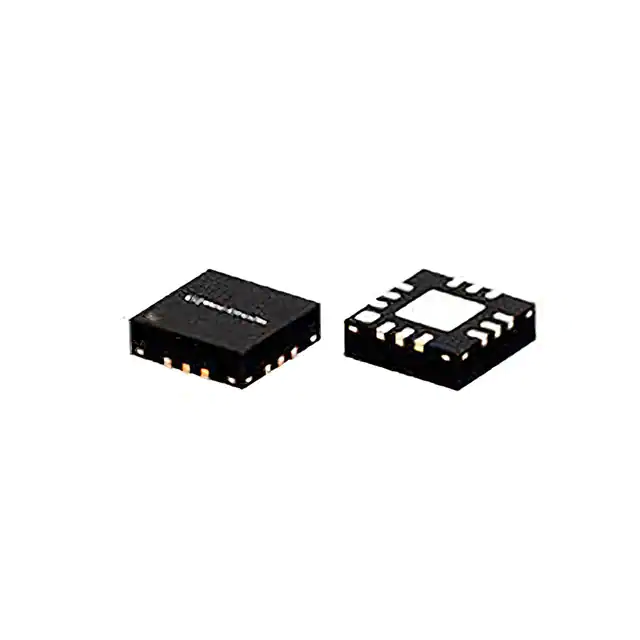

| Part Number | WP4P+ | WP4U+ | WP4R+ | WP4S+ | WP4A+ | WP4G+ | WP4N+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Insertion Loss | 0.7dB | 0.7dB | 0.7dB | 0.8dB | 0.9dB | 0.7dB | 0.7dB |
| Frequency | 1.71 GHz ~ 2.025 GHz | 2.1 GHz ~ 2.5 GHz | 2.3 GHz ~ 2.7 GHz | 3.4 GHz ~ 4.6 GHz | 5.1 GHz ~ 6.5 GHz | 1.42 GHz ~ 1.66 GHz | 1.215 GHz ~ 1.9 GHz |
| Specifications | Isolation (Min) 19dB, 4° Imbalance (Max) | Isolation (Min) 18dB, 1.35 VSWR (Typ), 4° Imbalance (Max) | Isolation (Min) 18dB, 1.35 VSWR (Max), 6° Imbalance (Max) | Isolation (Min) 16dB, 1.5 VSWR (Typ), 9° Imbalance (Max) | Isolation (Min) 15dB, 1.6 VSWR (Typ), 8° Imbalance (Max) | Isolation (Min) 19dB, 1.4 VSWR (Typ), 4° Imbalance (Max) | Isolation (Min) 14dB, 1.5 VSWR (Typ), 5° Imbalance (Max) |
| Size / Dimension | 0.118" L x 0.118" W x 0.039" H (3.00mm x 3.00mm x 0.99mm) | 0.118" L x 0.118" W x 0.039" H (3.00mm x 3.00mm x 0.99mm) | 0.118" L x 0.118" W x 0.039" H (3.00mm x 3.00mm x 0.99mm) | 0.118" L x 0.118" W x 0.039" H (3.00mm x 3.00mm x 0.99mm) | 0.118" L x 0.118" W x 0.039" H (3.00mm x 3.00mm x 0.99mm) | 0.118" L x 0.118" W x 0.039" H (3.00mm x 3.00mm x 0.99mm) | 0.118" L x 0.118" W x 0.039" H (3.00mm x 3.00mm x 0.99mm) |
| Package / Case | 12-VQFN Exposed Pad | 12-VQFN Exposed Pad | 12-VQFN Exposed Pad | 12-VQFN Exposed Pad | 12-VQFN Exposed Pad | 12-VQFN Exposed Pad | 12-VQFN Exposed Pad |
