TCW2-7200+
  • Share:

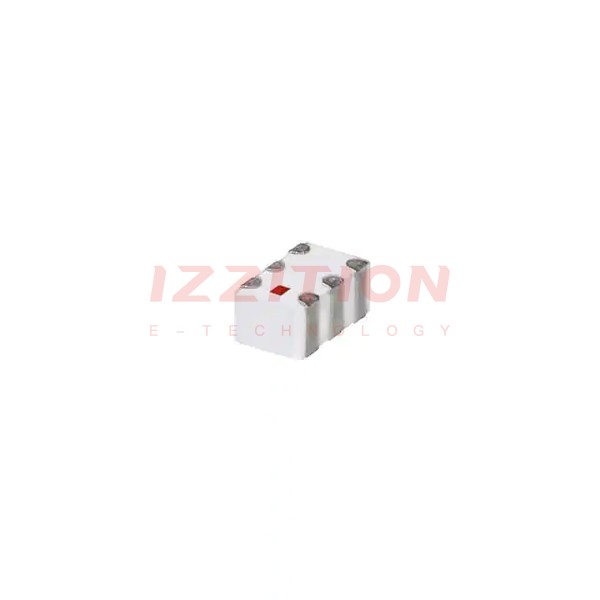

Mini-Circuits TCW2-7200+

Manufacturer No:
TCW2-7200+
Manufacturer:
Mini-Circuits
Package:
Tape & Reel (TR)
Datasheet:
TCW2-7200+ Datasheet
ECAD Model:
-
Description:
1:2 LTCC XFMR, 5500 - 7200 MHZ
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Frequency Range:5.5GHz ~ 7.2GHz
Impedance - Unbalanced/Balanced:50 / 100Ohm
Phase Difference:8°
Insertion Loss (Max):1.5dB
Return Loss (Min):9.5dB
Package / Case:0603 (1608 Metric), 6 PC Pad
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$2.96
78

Please send RFQ , we will respond immediately.
