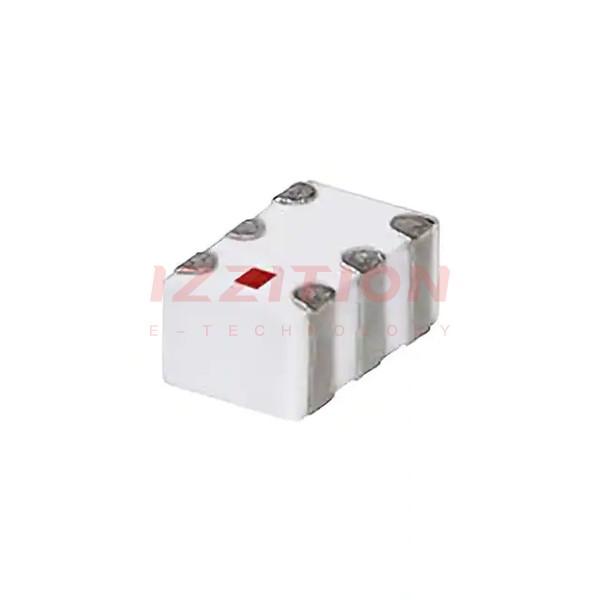

Mini-Circuits TCW1-3901+

Manufacturer No:
TCW1-3901+
Manufacturer:
Mini-Circuits
Package:
Tape & Reel (TR)
Datasheet:
TCW1-3901+ Datasheet
ECAD Model:
-
Description:
1:1 LTCC TRANSFORMER, 3300 - 390
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Frequency Range:3.3GHz ~ 3.9GHz
Impedance - Unbalanced/Balanced:50 / 50Ohm
Phase Difference:4°
Insertion Loss (Max):1.5dB
Return Loss (Min):1.39dB
Package / Case:0603 (1608 Metric), 6 PC Pad
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$1.15
501

Please send RFQ , we will respond immediately.
