Please send RFQ , we will respond immediately.

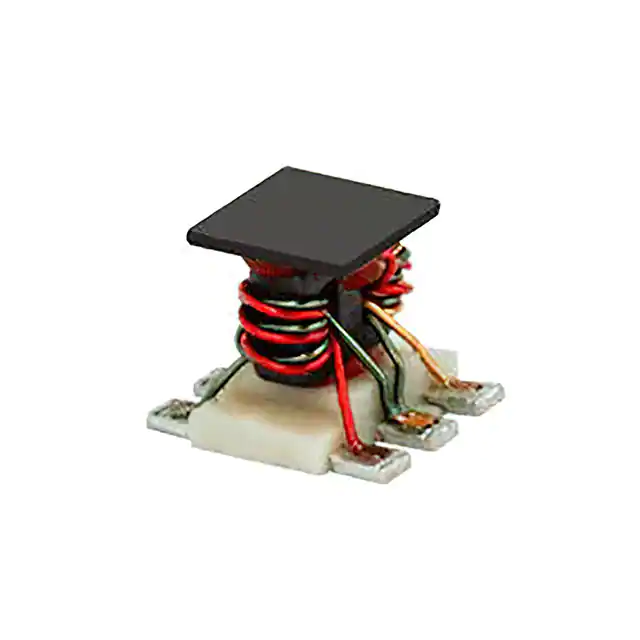

| Part Number | TCD-16-122-75X+ | TCD-6-122-75X+ | TCD-18-122-75X+ | TCD-16-12W-75X+ | TCD-10-122-75X+ | TCD-13-122-75X+ |
|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active |
| Coupler Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Frequency | 5MHz ~ 1.25GHz | 5MHz ~ 1.25GHz | 5MHz ~ 1.25GHz | 5MHz ~ 1.218GHz | 5MHz ~ 1.25GHz | 5MHz ~ 1.25GHz |
| Coupling Factor | 16.5 ± 0.5dB | 6.7 ± 0.3dB | 17.5 ± 0.8dB | 16 ± 0.5dB | 10 ± 0.5dB | 12.7 ± 0.5dB |
| Applications | CATV, Cellular | CATV, Cellular | CATV | CATV, Cellular | CATV, Cellular | CATV, Cellular |
| Insertion Loss | - | - | - | - | - | - |
| Power - Max | 1W | 1W | 1W | 1W | 500mW | 1W |
| Isolation | - | - | - | - | - | - |
| Return Loss | 32.2dB | 43.05dB | 29.71dB | 27.86dB | 40.31dB | 24dB |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD (5 Leads), Flat Lead | 6-SMD, Flat Leads |
| Supplier Device Package | - | - | - | - | - | - |
