Please send RFQ , we will respond immediately.

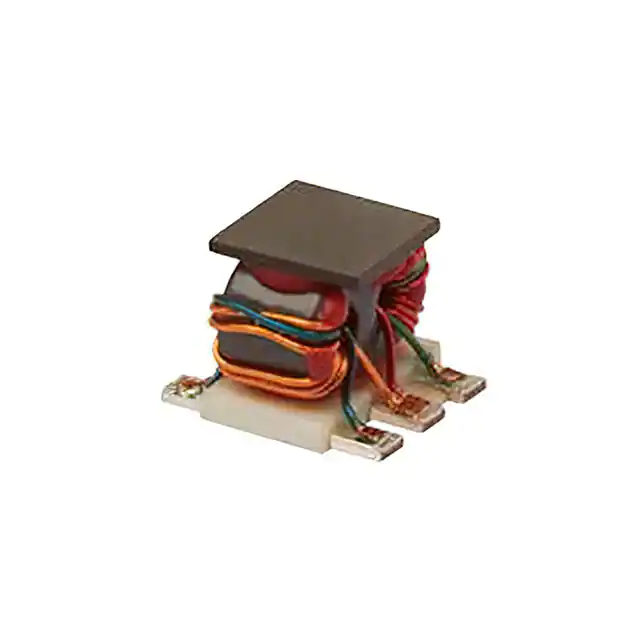

| Part Number | TCD-10-4-75X+ | TCD-13-4-75X+ | TCD-20-4-75X+ | TCD-18-4-75X+ | TCD-10-4-75+ |
|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active |
| Coupler Type | Standard | Standard | Standard | Standard | Standard |
| Frequency | 5MHz ~ 1GHz | 5MHz ~ 1GHz | 40MHz ~ 1.2GHz | 10MHz ~ 1GHz | 5MHz ~ 1GHz |
| Coupling Factor | 9.9 ± 0.5dB | 13 ± 0.5dB | 21 ± 0.5dB | 18 ± 0.5dB | 9.9 ± 0.5dB |
| Applications | CATV | CATV, Cellular | CATV | CATV, Cellular | CATV |
| Insertion Loss | - | - | - | - | - |
| Power - Max | 1W | 1W | 1W | 1W | 1W |
| Isolation | - | - | - | - | - |
| Return Loss | 38.95dB | 29.75dB | 32.12dB | 28.73dB | 38.95dB |
| Package / Case | 6-SMD (5 Leads), Flat Lead | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 4-SMD, Flat Leads |
| Supplier Device Package | - | - | - | - | - |
