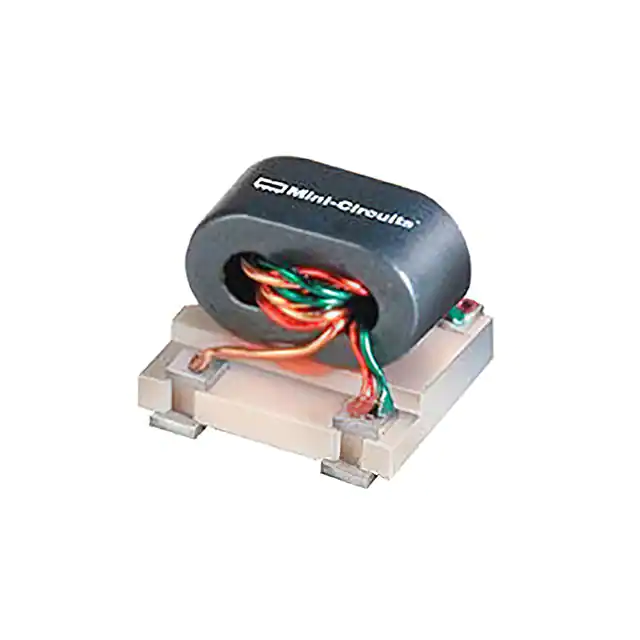

| Part Number | TC4-14+ | TC4-19+ | TC4-1T+ | TC4-1W+ | TCM4-14+ | TC4-14X+ | TC4-11+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Frequency Range | 200MHz ~ 1.4GHz | 10MHz ~ 1.9GHz | 500kHz ~ 300MHz | 3MHz ~ 800MHz | 200MHz ~ 1.4GHz | 200MHz ~ 1.4GHz | 2MHz ~ 1.1GHz |
| Impedance - Unbalanced/Balanced | 1:4 | 1:4 | 1:4 | 1:4 | 1:4 | 1:4 | 12.5:50 |
| Phase Difference | - | 6° | - | - | - | - | - |
| Insertion Loss (Max) | 3dB | 3dB | 2.0dB | 3dB | 3dB | 3dB | 2.0dB |
| Return Loss (Min) | 5.05dB | 7.01dB | 14.29dB | 9.07dB | 5.52dB | 5.05dB | 18.37dB |
| Package / Case | 5-SMD Module | 5-SMD Module | 6-SMD (5 Leads), Flat Lead | 5-SMD Module | 6-SMD Module | 5-SMD Module | 5-SMD Module |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
