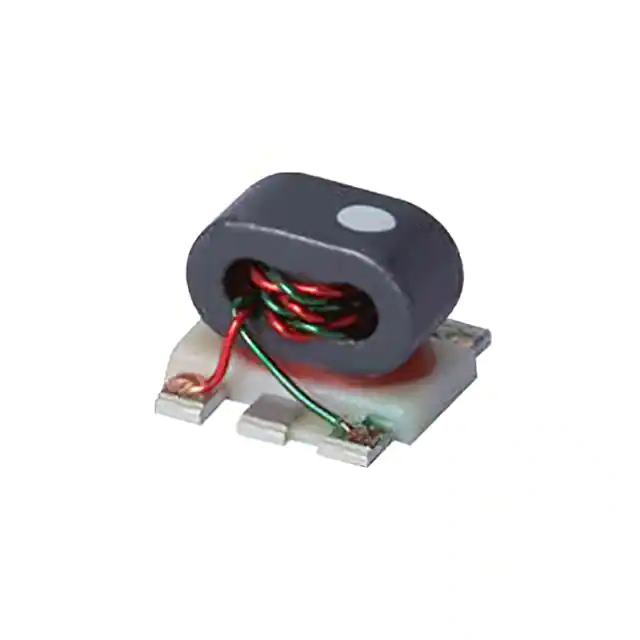

| Part Number | TC1-1T+ | TC3-1T+ | TC2-1T+ | TC4-1T+ | TC1-1TX+ | TC1-1X+ | TC16-1T+ | TC1-1+ | TC1-15+ |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Frequency Range | 400kHz ~ 500MHz | 5MHz ~ 300MHz | 3MHz ~ 300MHz | 500kHz ~ 300MHz | 400kHz ~ 500MHz | 1.5MHz ~ 500MHz | 20MHz ~ 300MHz | 1.5MHz ~ 500MHz | 350MHz ~ 1.5GHz |
| Impedance - Unbalanced/Balanced | 50 / 50Ohm | 1:3 | 1:2 | 1:4 | 50 / 50Ohm | 50 / 50Ohm | 1:16 | 50 / 50Ohm | 50 / 50Ohm |
| Phase Difference | 5° | 5° | 4° | - | 5° | 2° | 5° | 2° | - |
| Insertion Loss (Max) | 3dB | 1.0dB | 1.0dB | 2.0dB | 3dB | 3dB | 3dB | 3dB | 2.0dB |
| Return Loss (Min) | 6.9dB | 21.45dB | 15dB | 14.29dB | 6.9dB | 10.1dB | 4.34dB | 10.1dB | 7.58dB |
| Package / Case | 6-SMD (5 Leads), Flat Lead | 5-SMD Module | 5-SMD Module | 6-SMD (5 Leads), Flat Lead | 6-SMD (5 Leads), Flat Lead | 5-SMD Module | 5-SMD Module | 5-SMD Module | 5-SMD Module |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
