Please send RFQ , we will respond immediately.

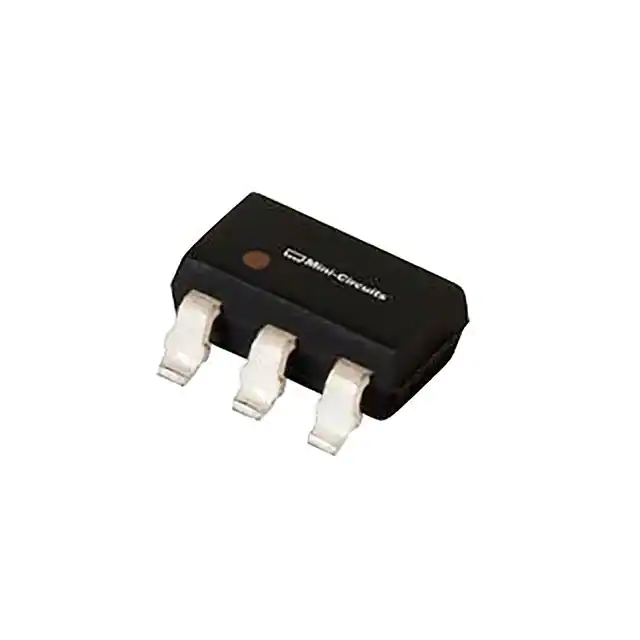

| Part Number | SP-2C1+ | SP-2G1+ | SP-2U1+ | SP-2P1+ | SP-2W1+ | SP-2C+ |
|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active |
| Insertion Loss | 0.4dB | 0.7dB | 0.5dB | 0.5dB | 0.8dB | 0.4dB |
| Frequency | 640 MHz ~ 1.1 GHz | 1.2 GHz ~ 2 GHz | 2.3 GHz ~ 2.5 GHz | 1.35 GHz ~ 2.25 GHz | 2.875 GHz ~ 4.2 GHz | 780 MHz ~ 960 MHz |
| Specifications | Isolation (Min) 10dB, 1.25 VSWR (Max), 2° Imbalance (Max) | Isolation (Min) 10dB, 1.5 VSWR (Typ), 4° Imbalance (Max) | Isolation (Min) 16dB, 1.35 VSWR (Max), 3° Imbalance (Max) | Isolation (Min) 9dB, 1.3 VSWR (Typ), 4° Imbalance (Max) | Isolation (Min) 10dB, 1.4 VSWR (Typ), 8° Imbalance (Max) | Isolation (Min) 17dB, 1.2 VSWR (Max), 2° Imbalance (Max) |
| Size / Dimension | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) |
| Package / Case | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 |
